The Large Wholesale hydrogen Community Water Station
EHM-HS160（Single joint）EHM-HS480（3 connectors）1

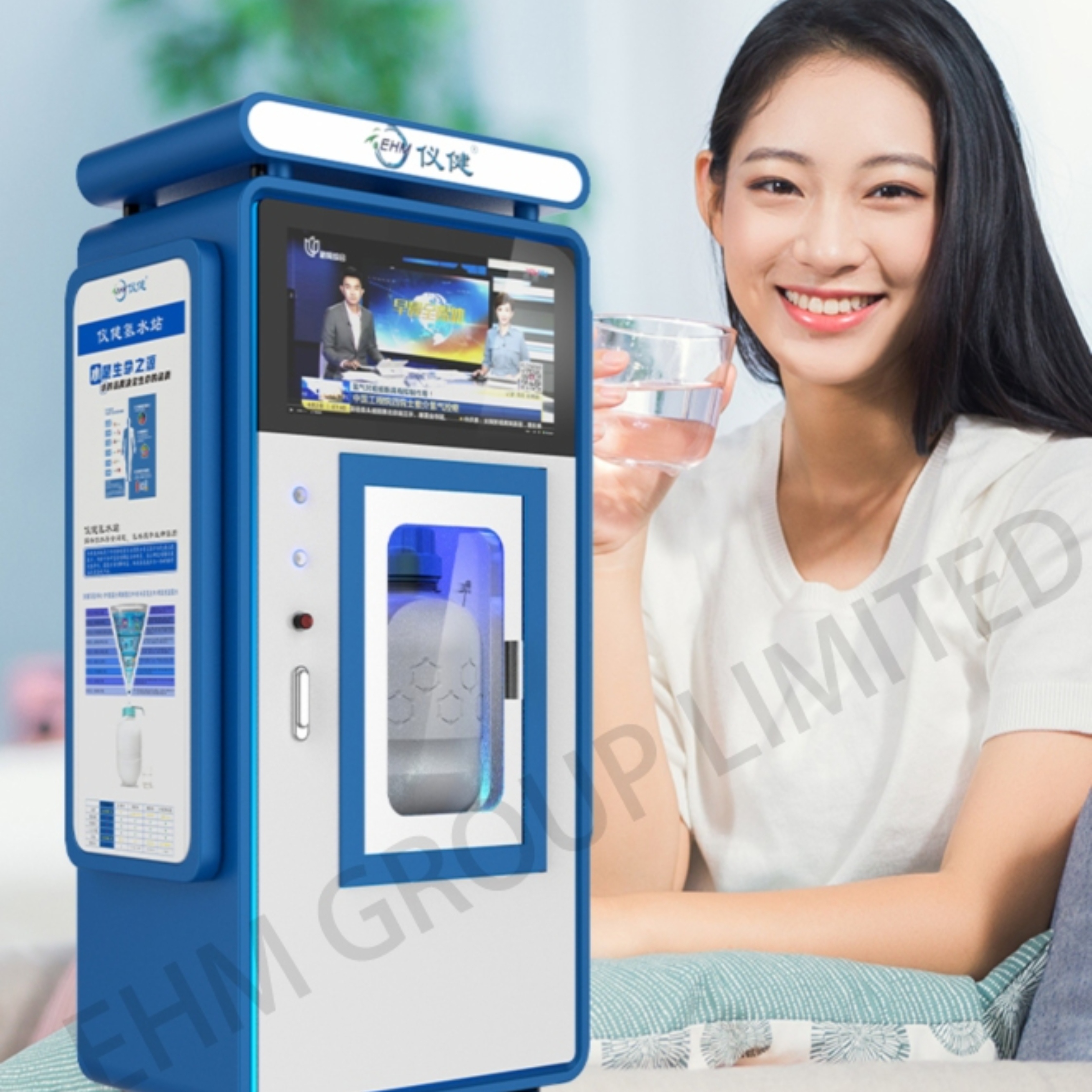

Product name: Mini hydrogen rich water station
Product model:EHM-HS160（Single joint）、EHM-HS480（3 connectors）
Electronic automatic control system: AC contactor (Schneider, Germany); The low-end version is switch controlled; The high-end version is a programmable logic controller (Siemens PLC, Germany)
Electrolytic cell: imported membrane+electrode combination
Water valve: 304 stainless steel water valve
Water pipe: food grade UPVC water pipe
Liquid level switch: raw water and hydrogen rich water level detection gauge
Automatic multi-media filtering system: quartz sand filter element
Activated carbon adsorption system: imported high-quality coconut shell activated carbon
ATC sterilization security filter: 5 micron PP cotton
NF nanofiltration system: 1 nanometer nanofiltration membrane
UV sterilization system: UV sterilization system
High magnetization filtration system: High magnetization system
Hydrogen production method: SPE hydrogen oxygen separation electrolytic cell
Hydrogen content: 3000-5000PPB
Rated water output of equipment: 60L/H, 120L/H
Raw water type: Municipal tap water
Working pressure: 0.1-0.5Mpa
Rated power: 375W/450W
Voltage/phase current: 380V three box/220V single-phase
Host size: 1100 * 620 * 1650mm
Pipe mounting platform size: 890 * 400 * 115mm
Input power supply: AC220V 60Hz/50Hz
PH value: 7.2-8.5
Display screen size: 22 inches
Safety protection device: overheat protection
Filter element material: activated carbon fiber filter element
Filter life: 3000L-12000L replaceable depending on water quality
Intelligent IoT system: functions such as scanning payment, online recharge, member management, remote control, data monitoring, distribution management, etc., can be customized and developed.
Product model:EHM-HS160（Single joint）、EHM-HS480（3 connectors）
Electronic automatic control system: AC contactor (Schneider, Germany); The low-end version is switch controlled; The high-end version is a programmable logic controller (Siemens PLC, Germany)
Electrolytic cell: imported membrane+electrode combination
Water valve: 304 stainless steel water valve
Water pipe: food grade UPVC water pipe
Liquid level switch: raw water and hydrogen rich water level detection gauge
Automatic multi-media filtering system: quartz sand filter element
Activated carbon adsorption system: imported high-quality coconut shell activated carbon
ATC sterilization security filter: 5 micron PP cotton
NF nanofiltration system: 1 nanometer nanofiltration membrane
UV sterilization system: UV sterilization system
High magnetization filtration system: High magnetization system
Hydrogen production method: SPE hydrogen oxygen separation electrolytic cell
Hydrogen content: 3000-5000PPB
Rated water output of equipment: 60L/H, 120L/H
Raw water type: Municipal tap water
Working pressure: 0.1-0.5Mpa
Rated power: 375W/450W
Voltage/phase current: 380V three box/220V single-phase
Host size: 1100 * 620 * 1650mm
Pipe mounting platform size: 890 * 400 * 115mm
Input power supply: AC220V 60Hz/50Hz
PH value: 7.2-8.5
Display screen size: 22 inches
Safety protection device: overheat protection
Filter element material: activated carbon fiber filter element
Filter life: 3000L-12000L replaceable depending on water quality
Intelligent IoT system: functions such as scanning payment, online recharge, member management, remote control, data monitoring, distribution management, etc., can be customized and developed.
Delivery
DAP
minimum order
1 piece
Supply Ability
500piece /
Country of Origin
China
Stock Time
3Day
1 - 3 pieces
$3950.00
4 -
7
pieces$3850
8 -
11
pieces$3750
>= 12 pieces
$3700
Quantity
US $3950.00
/ piece
US $1,088.00
To
via
自有物流
Estimated Delivery on
8-15
The hydrogen rich water station integrates advanced filtration technology in the industry, combined with more than a decade of accumulation of hydrogen rich electrolysis technology, and independently developed a high concentration hydrogen water product that integrates deep filtration evolution, hydrogen oxygen separation electrolysis hydrogen production, and nano hydrogen dissolution technology.
The filtration system we use consists of six major systems: automatic multi medium filtration system, activated carbon adsorption system, ATC sterilization security filter, NF nanofiltration system, ultraviolet sterilization system, and high magnetization filtration system.
The filtration system we use consists of six major systems: automatic multi medium filtration system, activated carbon adsorption system, ATC sterilization security filter, NF nanofiltration system, ultraviolet sterilization system, and high magnetization filtration system.
Our hydrogen water station adopts nano hydrogen melting technology, and the high-purity hydrogen mixing tower, also known as the mixing tower, has a better mixing effect with a larger contact area between high-purity hydrogen and water, and the hydrogen content in the water is also higher. In order to ensure sufficient mixing area and time for high-purity hydrogen and water, it is necessary to have sufficient mixing space. Generally, the mixing time for high-purity hydrogen is 5-10 minutes. Therefore, we need to design the space for the high-purity hydrogen mixing tower based on the mixing time and flow rate. After the space for the high-purity hydrogen mixing tower is determined, it is generally necessary to achieve convective mixing of high-purity hydrogen and water components, In this way, high-purity hydrogen and water have sufficient mixing time and space to achieve the best hydrogen dissolution effect.
The specific process flow of water treatment is to pass tap water through an automatic multi medium filtration system, enter the automatic activated carbon filtration system, enter the 5-micron precision security filter, enter the high-pressure pump, enter the NF nanofiltration system, enter the stainless steel clean water storage tank, enter the sterilization system, enter the high magnetization filtration system, enter the high-purity hydrogen water mixing system, enter the water supply system, and finally enter the filling system for effluent.
